Do you need multiple API gateways? When one is enough

Do you need multiple API gateways? Usually not at first. A single API gateway can route, secure, and rate-limit all of an organisation's APIs, and it's simpler to run. Multiple gateways become the right answer when a concrete constraint appears: internal and partner traffic need to be separated, data must stay in a region, business units need independence, or each cloud you run on brings its own native gateway.

This guide covers when one gateway is enough, the patterns for running several, and how to keep security and visibility consistent when you do. If you're still separating the concepts, start with API gateway vs API management.

When one gateway is enough

A single gateway is the right choice when:

• Your APIs run in one cloud or data centre and one region.
• One platform team owns API standards and operations.
• Internal and external consumers can be separated by routes and policies within the same gateway.
• Traffic is within what a horizontally scaled gateway cluster handles comfortably.

One gateway means one place to apply authentication, rate limits, and logging, one set of runbooks, and one bill. Scaling a gateway cluster horizontally is usually cheaper than introducing a second product.

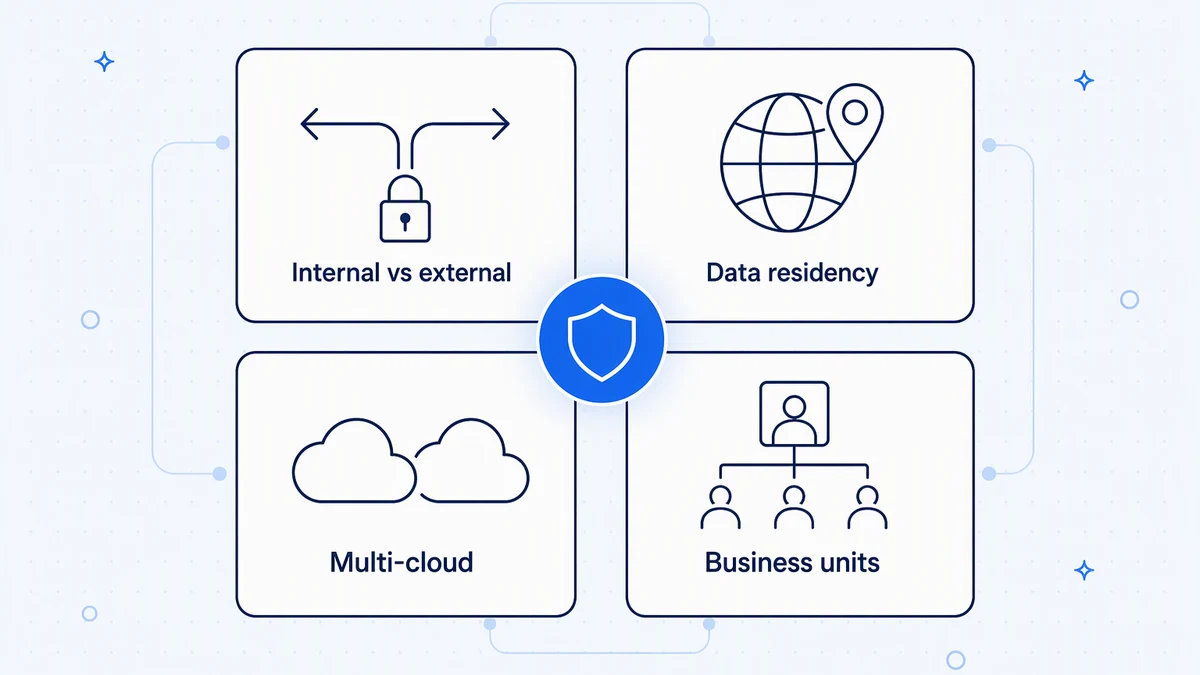

When multiple API gateways make sense

Reason	What it looks like	Why one gateway falls short
Internal vs external traffic	A private gateway for service-to-service calls and a public edge gateway for partners and customers	Different security posture, exposure, and change cadence
Regional data residency	A gateway per region so requests and logs stay in-region	Routing everything through one region breaks residency rules
Multi-cloud	Each cloud's native gateway (Amazon API Gateway, Azure API Management, Google Apigee) in front of the services there	Cross-cloud hops add latency, cost, and failure points
Business unit independence	Separate gateways for divisions or acquired companies with their own teams	One shared gateway becomes a bottleneck for change
Specialised traffic	A gateway tuned for streaming, gRPC, or very high throughput	One configuration can't optimise every traffic type
Isolation for risk	A separate gateway for high-risk or regulated APIs	Limits the blast radius of a misconfiguration

Architecture patterns for multiple gateways

1. Edge plus internal. A public edge gateway handles authentication, threat protection, and rate limits for outside callers; an internal gateway handles service-to-service routing. This is the most common pattern.
2. Regional gateways. The same configuration deployed per region, with DNS or a global load balancer routing callers to the nearest compliant region.
3. Gateway per cloud. Each cloud's native gateway fronts the services running there, with shared policies managed centrally.
4. Federated gateways. Business units run their own gateways, but publish to a shared catalogue and follow common standards.

Keeping multiple gateways consistent

• One identity provider. Every gateway validates tokens from the same OpenID Connect provider, with the same scopes and claims.
• Policies as code. Store gateway configuration in version control and promote it through environments, so every gateway runs the reviewed version.
• One catalogue. Developers should find every API in one place, whichever gateway serves it.
• Shared observability. Emit traces and metrics in a common format such as OpenTelemetry, with a trace ID passed across gateways, so a request can be followed end to end.
• Clear ownership. Each gateway has a named owner, an on-call rota, and documented scope.

Single, multiple, or hybrid?

	Single gateway	Multiple gateways	Hybrid (edge + internal)
Operational effort	Lowest	Highest	Moderate
Policy consistency	Built in	Needs discipline and tooling	Manageable with policies as code
Data residency	Hard across regions	Strong	Depends on deployment
Blast radius of a mistake	Whole estate	Contained to one gateway	Contained to edge or internal
Typical fit	Single-region, one platform team	Multi-region, multi-cloud, federated orgs	Most mid-size and large enterprises

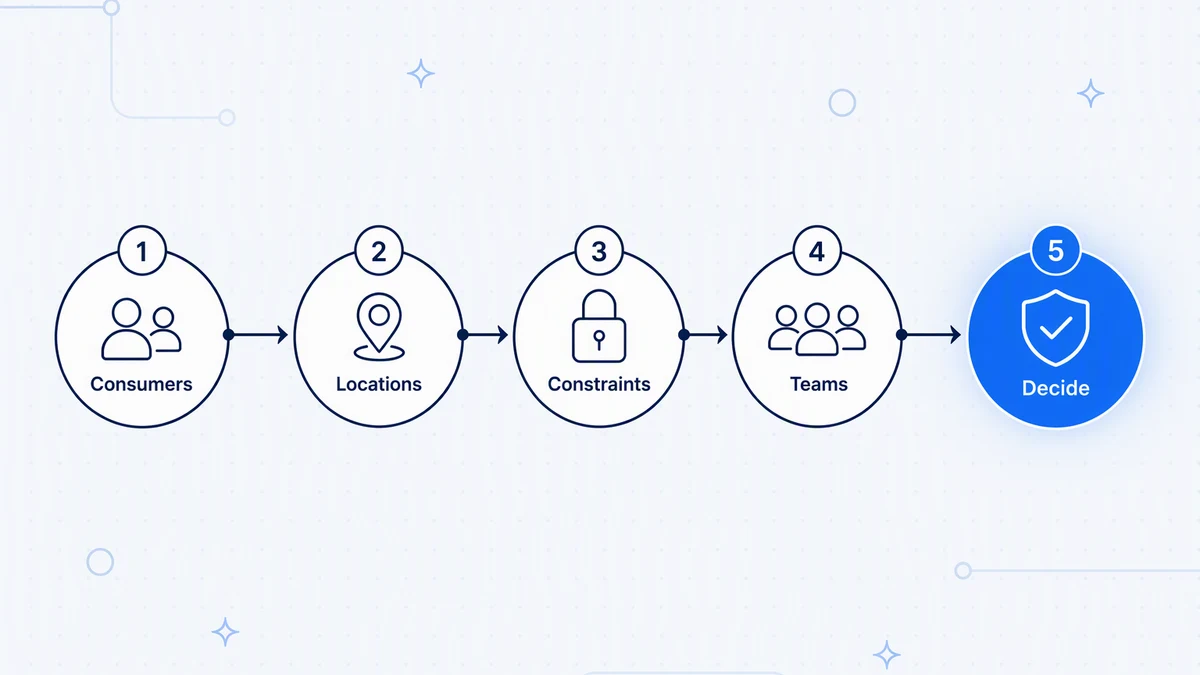

A practical decision checklist

1. List your API consumers: internal services, partners, customers, and AI agents.
2. Map where your APIs run: clouds, regions, and data centres.
3. Note hard constraints: residency, regulatory isolation, partner security requirements.
4. Check team structure: does one team own APIs, or several?
5. Start with one gateway, or edge plus internal, and add more only when a constraint requires it.
6. Before adding a gateway, decide how identity, policies, catalogue, and tracing stay unified.

Frequently asked questions

Do multiple API gateways increase the attack surface?

Each gateway is another component to secure and patch, so the surface grows. Separating public and internal traffic can still reduce risk overall, because internal APIs are no longer reachable from the edge.

How do I keep authentication consistent across multiple gateways?

Use one identity provider for every gateway, with the same token validation, scopes, and claims, and manage gateway policies as code so every gateway runs the same reviewed configuration.

How do I trace requests that cross several gateways?

Propagate a trace ID through every hop and emit traces in a common format such as OpenTelemetry, so requests can be followed across gateways, regions, and services in one view.

When should I move from one gateway to several?

When a specific requirement can't be met with one: data residency in multiple regions, a separate public edge for partners, workloads in several clouds, or business units that need independent control.

Can I use different gateway products together?

Yes, and multi-cloud organisations often do. It works best when policies, identity, and observability are standardised above the gateways rather than configured separately in each product.

Fewer gateways, governed well

Most teams need fewer gateways than they think, and the ones that need several succeed by keeping a single policy model. To see how Koodisi publishes and governs the APIs behind your gateways, book a demo.
