TL;DR
- Data mapping aligns fields and semantics between source and target systems so data can move, transform, and be trusted for migrations, APIs, analytics, and B2B exchanges.
- Follow a repeatable process: discovery/profiling, define target model, automated schema suggestions plus manual confirmation, transformation spec, validation, deployment, and versioned maintenance.
- Pick tools that match governance needs: prioritize metadata/lineage for audits, automated mapping for large catalogs, and EDI support for B2B; evaluate runtime and deployment costs.
Data mapping is the process of aligning fields and semantics between source and target systems so data can move, transform, and be trusted. It defines field-to-field correspondences, transformation rules, and semantic equivalence so migrations, APIs, reporting, and B2B exchanges work reliably.
Integration engineers, data architects, master data management (MDM) teams, EDI specialists, and chief data officers (CDOs) need data mapping to remove ambiguity between systems. Typical problems it solves include system migrations, analytics that require consistent definitions, API mediation between partners, and EDI-based B2B exchanges where partners use different message formats.
Many vendor pages offer high-level descriptions but little actionable guidance. This guide gives practical definitions, a repeatable mapping process, examples (including an EDI data mapping example), advice on choosing data mapping tools, and governance patterns. It also outlines how platforms commonly implement mapping features and what to ask vendors about.
What is data mapping?
Data mapping is the act of defining how data in one structure corresponds to data in another. More formally, it records source-to-target relationships: which source field(s) populate a target field, what transformation rules apply, and how semantics align so the target interprets values correctly.
Schema mapping focuses on structure: table columns, JSON paths, XML elements, and data types. Semantic mapping focuses on meaning, for example whether cust_id in one system equals customerNumber in another and how business context should be interpreted.
Metadata mapping captures mapping-level metadata such as who authored the mapping, the rationale, timestamped lineage, and references to business glossaries. Data transformation is the set of operations that run during mapping: format conversion, concatenation, arithmetic, lookups, and conditional logic.
Mapping is distinct from integration. Mapping is the translation layer that makes payloads compatible. Integration is the end-to-end process that moves, schedules, secures, and observes those payloads.
Key terms used in this guide:
- Source: the originating system or file.
- Target: the destination system or contract.
- Field/attribute: a named data element.
- Transformation rule: the logic applied to change data shape or value.
- Lookup: reference-driven enrichment or normalization.
- Canonical model: a reuse-focused intermediate schema to reduce pairwise mappings.
- Mapping template: a reusable mapping definition.
- Lineage: the trace of a field from source through every transformation to its target.
Clear metadata makes impact analysis faster.
Types of data mapping
Data mapping appears in many technical forms.
- Database mapping: relational table-to-table or column-to-column mapping, including joins and foreign-key resolution.
- API-to-API mapping: JSON or XML payloads mapped between REST or SOAP contracts.
- EDI data mapping: X12 or EDIFACT segments translated to internal application schemas for orders, invoices, and shipping notices.
- Flat-file to database: column-delimited or fixed-width files mapped into normalized tables.
- Metadata/ontology mapping: aligning taxonomies, vocabularies, and URIs across systems.
Enterprise use cases are common:
- System migrations and consolidations where many source schemas must be brought into a target ERP or CRM such as NetSuite or SAP.
- Master data management to create golden customer, product, or vendor records.
- Data warehousing and ETL where operational systems feed analytics platforms with consistent dimensions.
- B2B/EDI exchanges between retailers and suppliers.
- API mediation between partners that expect different versions or shapes.
- Real-time streaming transformations for event-driven architectures and observability.
Domain-specific examples:
- Retail supply chain: map an X12 850 purchase order to internal order tables, mapping quantities, SKUs, ship-to locations, and price breaks.
- Healthcare: map HL7 messages to FHIR resources to standardize patient and encounter data.
- Finance: normalize payment message formats for clearing systems.
- Marketing: unify customer profile fragments from CRM, web events, and ad platforms into a single profile.
Use automated schema matching for structural similarity and bulk suggestions. Require human review and sign-off for derived calculations, policy rules, and multi-field semantic decisions.

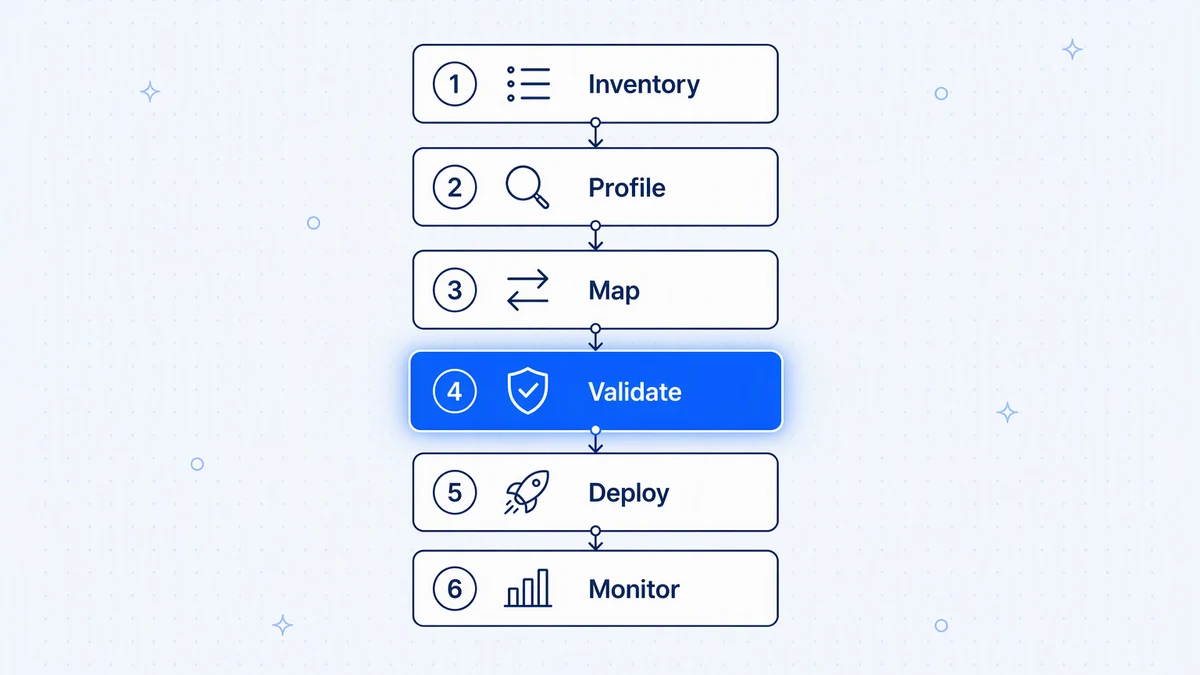

The data mapping process, step by step
Discovery and profiling: inventory source and target systems, collect representative samples, and profile data distributions and null rates. Identify cardinality differences and common data-quality issues such as duplicate keys, invalid enums, and inconsistent formats.
Define a target model: choose a canonical schema or the target application model. Document business rules, accepted formats, mandatory fields, and normalization rules. Agree on units, timezones, and locale-sensitive formats before mapping begins.
Schema and semantic matching: run automated schema-matching tools to produce suggested correspondences, then have domain experts confirm semantics. Capture mapping metadata, the mapping rationale, and any exceptions as part of the mapping artifact.
Transformation specification: write explicit transformation rules—format conversions, concatenations, type casts, unit conversions, lookups, and conditional logic. Keep transformations modular so they are reusable.
Validation and testing: create test cases and sample payloads that cover normal flows and edge cases. Include reconciliation queries that count and hash records between source and target. Automate unit tests and integration tests where possible.
Deployment and monitoring: promote workflows and their mappings into runtime with versioned promotion paths; monitor throughput, latency, and error rates, and set alerts for unexpected changes. Use observability traces to pinpoint slow or failing mapping steps; see Koodisi's observability features for examples of tracing mapping steps.
Maintenance and versioning: store mapping definitions in a repository with change history, tag releases, and document lineage for audits. Schedule periodic reviews when upstream systems change. Keep mapping artifacts executable inside your iPaaS so tests run in CI, reviewers can re-run transformations, and rollbacks are quick and auditable.
Data mapping tools
Tools fall into four categories: enterprise ETL/iPaaS platforms, point EDI/mapping tools, open-source libraries, and specialized visual mapping editors. Each category fits different scale, governance, and user types.
| Category | Best for | How mapping is built | Watch out for |
|---|---|---|---|
| ETL and data integration tools | Bulk loads into warehouses and lakes | Visual designers plus code | Built for batch analytics, not app-to-app flows |
| iPaaS platforms | Mapping between applications and APIs inside workflows | Visual drag-and-drop mappers, expressions, often AI assistance | Mapping depth varies; test with your messiest payload |
| EDI mapping tools | B2B documents such as X12 and EDIFACT | Specialised editors and partner templates | Narrow scope outside EDI |
| Open-source libraries | Developer-owned, custom transformations | Code | You build validation, lineage, and tooling yourself |
How mapping works in Koodisi
Koodisi builds mapping into every workflow step. You drag a source field onto a target field, extend the target schema if you need extra fields, and click Validate; schema mismatches show up in a mapping error panel before anything runs. Views filter to mapped or unmapped fields, so gaps are easy to spot. Expressions handle the transformations most mappings need, such as concat($.Customer.firstName, $.Customer.lastName), sums, filters like $.Orders[status='shipped'], and relative paths into arrays.
For larger mappings, you can describe what should go where in plain language, and Koodisi's AI assistant drafts the mapping for you to review and approve; it asks for the source or target structure if either is missing. See workflow orchestration for how mappings fit into the rest of a workflow.
Selection advice:
- Prioritize metadata and lineage if governance or audits are required. Use a central registry or catalog to centralize schemas where possible.
- Favor automated mapping when catalogs are large or change frequently, and validate semantics with domain experts.
- Choose tools with EDI support for B2B or a low-code GUI when business users will own mappings.
- Match deployment model to compliance needs, evaluate runtime performance, and factor team skills.
Licensing and operational considerations:
Evaluate base price, runtime licensing, and the cost of custom connectors and on-call support. For large-scale enterprise contracts expect multi-year commitments and potentially substantial costs depending on scale and SLAs.
Practical data mapping examples
EDI-to-application example: Map an X12 850 Purchase Order to an internal order table. Typical field mappings:
- PO segment PO1 -> line_items.sku (trim, normalize case).
- PO1.QTY -> line_items.quantity (integer cast).
- N1.ST -> orders.ship_to_id (lookup by external party ID).
- PO.header_date -> orders.order_date (convert from CCYYMMDD to ISO 8601).
Common transformations include date format conversion, unit conversions, code set lookups, and partner-specific SKU normalization. Typical validation rules reject missing required IDs, negative quantities, or unmatched SKUs.
Relational-to-JSON API example: Map normalized customer tables (customers, addresses, contacts) into a denormalized profile JSON for an API consumer. Steps include join customers->addresses->contacts, concatenate name fields, collapse multiple addresses into an array, omit null fields, and generate a consolidated consent_status based on multiple flags.
Metadata mapping example: A mapping artifact should record provenance: source_field -> transformation -> target_field, author, timestamp, and a link to the canonical model. That lineage is essential for audits and impact analysis when a downstream report changes.
Practical outputs teams should create: mapping specification documents, automated mapping definitions stored in the iPaaS, representative test payloads, and regression test suites runnable in CI.
Governance and common pitfalls

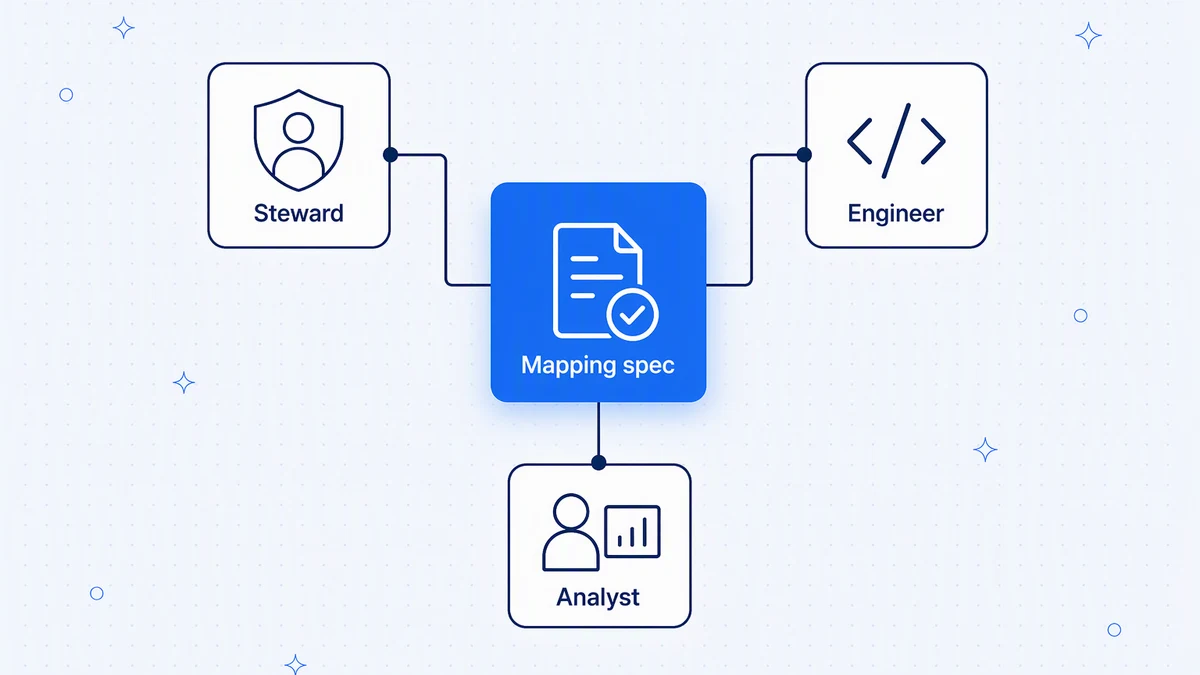

Map responsibilities clearly. The following outlines how roles interact with mapping work and with other teams:
- Information architect – defines canonical models and semantics, owns documentation and naming standards.
- Master data manager – owns domain rules, golden records, reconciliation processes, and operational quality of master entities.
- CDO – sets strategy, compliance requirements, prioritization, and reviews cross-domain policies.
Best practices:
- Use canonical models where feasible to avoid N×N pairwise mappings.
- Make mappings reusable and modular.
- Maintain a central metadata repository and capture business context for each mapping.
- Apply strict naming standards and document rationales.
Testing and CI/CD for mappings:
- Include automated unit and integration tests for mappings.
- Use synthetic and production-adjacent test data, and add regression checks when mapping logic changes.
Performance and reliability tips:
- Avoid expensive per-row remote lookups by using cached reference tables.
- Choose streaming vs batch based on latency needs.
- Monitor mapping runtimes and set alerts for schema drift.
Common pitfalls and how to avoid them:
- Ignoring semantics leads to flawed analytics, so capture business rules up front.
- Brittle, hard-coded mappings break on schema changes, so parameterize and version mappings.
- Lack of versioning and documentation makes auditing difficult; use a registry and change history.
For hands-on orchestration and visual mapping support, see Koodisi's workflow orchestration and connectors pages. When runs fail, recovery and owner assignment are important; review Engage for retry and fallout management.
Frequently Asked Questions
Q: What is data mapping and how is it different from ETL or data integration?
A: Data mapping is the translation layer that aligns fields and semantics between systems; ETL/data integration includes extraction, transport, scheduling, security, and observability in addition to mapping.
Q: How do I choose the right data mapping tool for EDI, APIs, or database migrations?
A: Match the tool to use case: choose EDI specialists for high-volume partner exchanges, enterprise iPaaS for governed APIs and mixed workloads, and open-source or libraries for developer-driven custom pipelines.
Q: Can data mapping be automated and when should I use automated schema matching?
A: Automated schema matching is effective for structural similarity and bulk suggestions; always validate semantics and use human sign-off for derived rules and policy-driven fields.
Q: What roles should own data mapping: information architect, master data manager, or the CDO?
A: Information architects define canonical models; master data managers own domain rules and golden records; CDOs set strategy, compliance, and prioritization. Assign tasks per capability and governance need.
Q: How do I maintain mappings over time when source or target schemas change?
A: Version mappings, run periodic discovery, monitor schema drift, and require change approvals; use a registry to propagate contract changes and regression tests to detect breakages.
Q: What is metadata mapping and why is lineage important for compliance?
A: Metadata mapping records who, why, and how transformations were created. Lineage traces a field across transformations and targets, which is essential for audits, impact analysis, and regulatory compliance.
